HUGE Tesla Coil

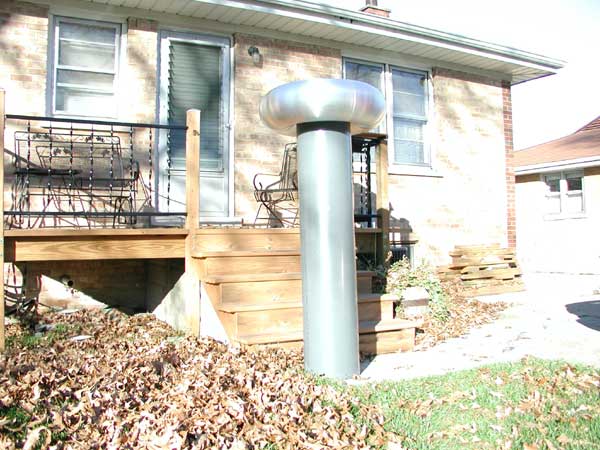

30" x 9" spun aluminum

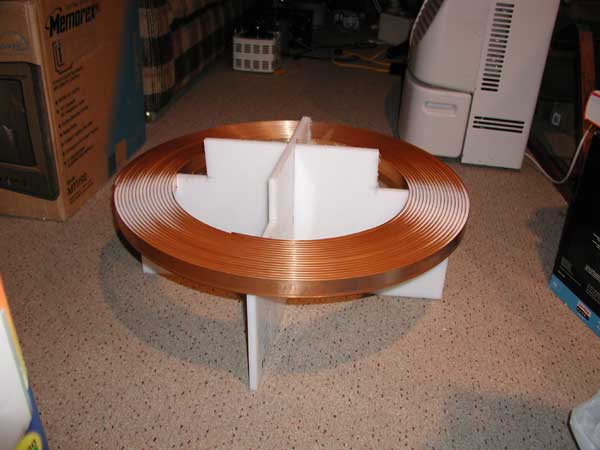

Flat-helical made up of 16 turns
1.25 " x 100 feet spring bronze weatherstrip (0.01" thick)
17" inside diameter
26" outside diameter

12.5" x 60" grey PVC duct pipe
Circumference: 39"
4500 feet of 18 gauge heavy build magnet wire
Turns: 1400
Weight: 22 LB
Inductance: 112 mH
Resonant Frequency: 95 KHz

30 KV @ 250 mA bombarder transformer with slide choke

0.04 uF to 0.08 uF at 45 KV capacitor (MMC type)

Asynchronous Rotary Spark Gap (Propeller Style)

Power Levels: 5 KW & 7.5 KW (so far)

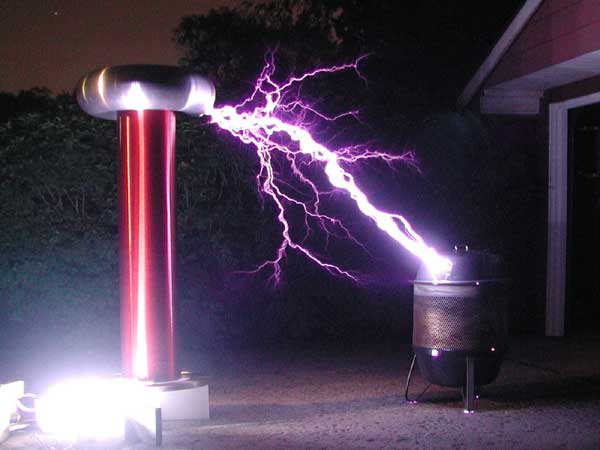

Spark Length: 9 feet (so far)

Click on photos for more details

Getting Started

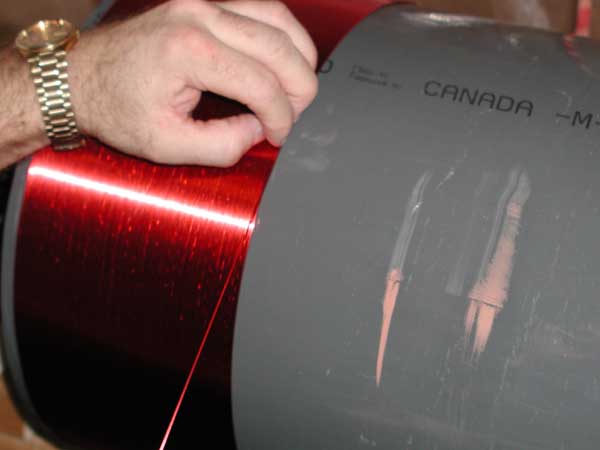

ZEN of Winding the Secondary

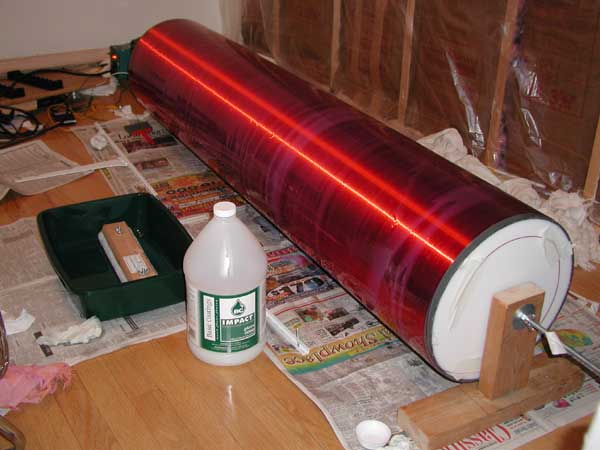

Coating the Secondary with Polyurethane

Winding the Primary

Asynchronous Rotary Spark Gap (propeller Style)

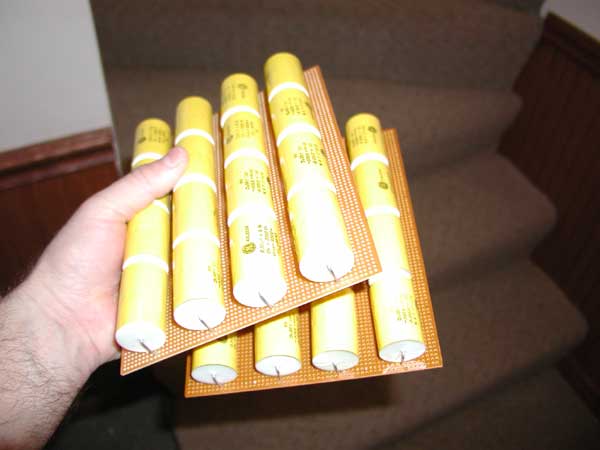

Multi-Mini Capacitors: MMC

1ST Power Up

2ND Power Up

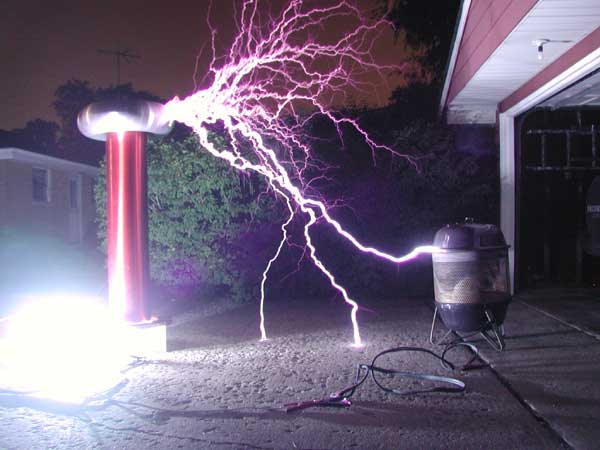

Coils in Action
